ATS SCOPE - 2 CHANNEL
Learn from the best! We have been working with ATS scopes since 1999 and have a close relationship with the factory (TiePie engineering).
Pick up valuable procedures with your 2 Channel ATS scope, all are very practical skills NEEDED for automotive diagnostics.
Each module is catagorised in skill level, from Easy to Highly technical.
- ATS SCOPE - 2 CHANNEL
- ATS SCOPE - 2 CHANNEL
QUICK FACTS
COURSE ID: ATS SCOPE – 2 CHANNEL
DURATION: N/A
Prerequisites: An ATS 2 Ch scope
- Learn more about what you can do with your ATS 2 channel Scope(s) through AECS Tools, at home or in your off time.
Overview
- In the below series of videos we show how to perform complex and specific tasks with your ATS 2 channel scope. Click on the module you like and get transferred to the Login page of Moodle.com or if you have already logged in, get taken straight to the module to view.
- Change channel colours, on the fly and permanent.
- How to make remarks and comments in the recording.
- How to open a recording from the saved signals folder.
- How to make measurements with the cross hairs and how to zoom and scroll the recording.
- Value window, add and delete measurements.
- Value window changes and settings behavior.
- Cross hairs, how to move and find them outside of the screen. Tricks how to move both at the same time and centralisen.
- Look at the recording and analyse, using the learned scope driving skills.
- Judge sample speed, tooth count, setup RPM line.
- Find middle level and hysteresis. Zoom the RPM line and analyse (DeltaN). Filter the missing teeth.

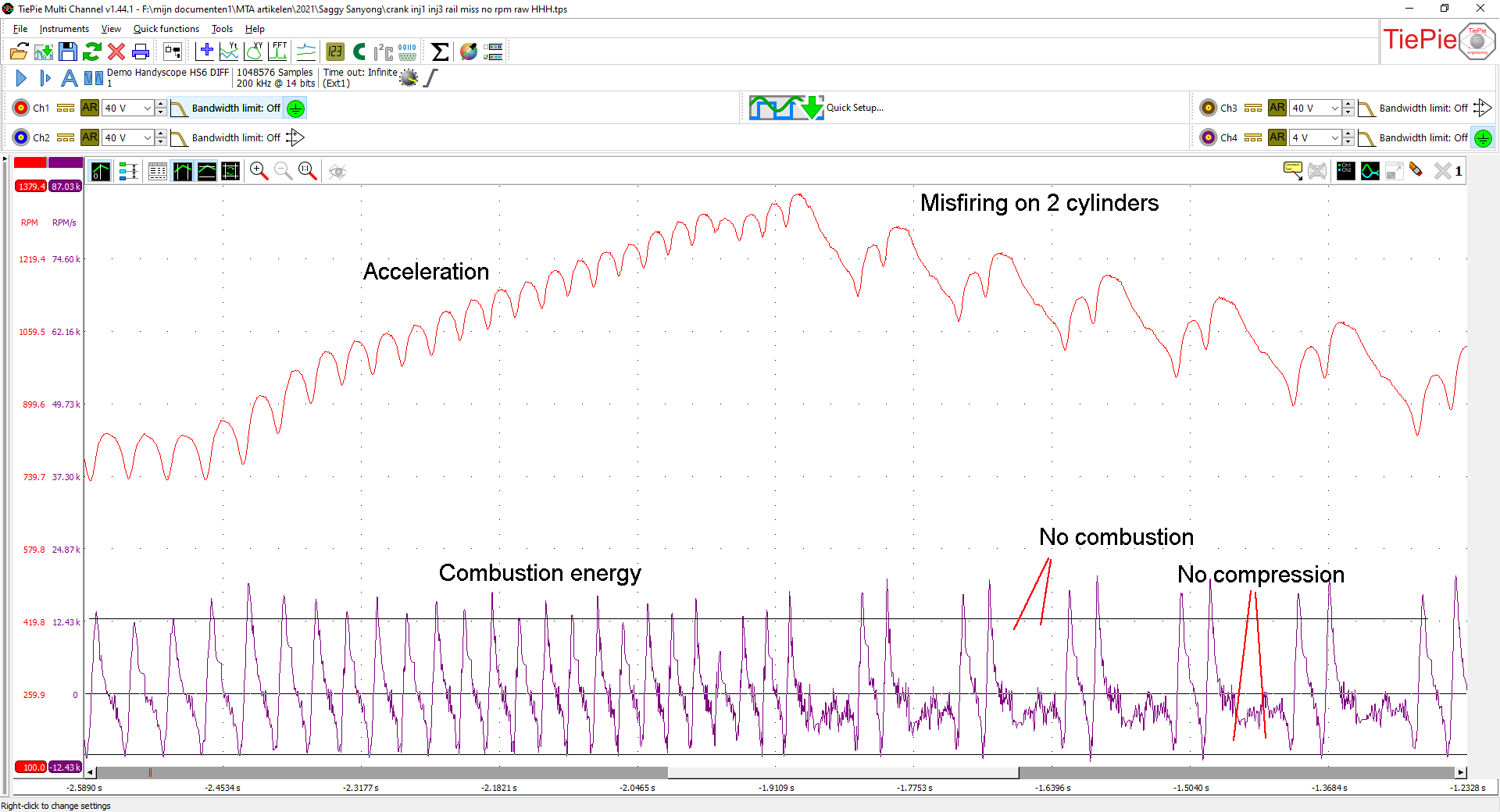

- Build on top of the RPM line the differentiator for compression and combustion energy measurements. Low pass filter set up and practicalities.
- Setting up injector pattern from scratch. Volt scale, time base, time out, trigger set up.
- Intermittent fault finding, manually setting up the scope for manual triggering and understanding the controls and background.
- Use the quick setup for injection.
- Ignition vs injection intermittent, manual triggering, setup from scratch. Add channel, sample rate adjust, record buffer adjust, differential and offset adjustmentt.
- Record crank shaft signal and convert to RPM, add low pass filter High RPM.
- How to join 2 ATS 5000 scopes as one 4 channel scope, Single source triggering.
- Join 2x ATS 5000 scopes and create a 3 channel measurement. Crank InCam and ExCam).
- Record, export and sendout a crank shaft sensor signal with the signal generator. Export to WAV, import into generator. Set RPM and amplitude.
- Open up an incorrect and correct recording from the tech support page. Focus on sample rate and crankshaft degrees. Cam crank phase measurement. Intro into XY graph. Multichannel. Populate the XY graph and measure simple cam movement Diesel..
- Tech support cam crank YX graph.
- VVTi Cam phasing XY graph during rev changes.
- Set up the signal generator with the solenoid driver. Adjust amplitude, offset, frequency and Symmetry. Drive a solenoid with inductive ON and OFF.
- Setup triggering and switch over from normal trigger to interval trigger.
- Interval triggering and pulse triggering, setting trigger points and interval or pulse time and condition. Change channel trigger.
- Join and measure with 2x ATS500XM scopes. Move from single channel to 4 channel measurement live. Looking at phasing. Change colours of channels.
- Open a 4 channel recording on a laptop with a 2 channel scope.
- Measure voltage and current dual channel. Calibration of the clamp and measurement mistakes. Using preset in Quick setup.
