Measurement leads, probes and clips

It is most important that if you have invested in quality equipment, the connection to the vehicle is not sub-standard.
Do not let probes or clips be the downfall of your work!

Please call us, if any of the descriptions is not clear +64 (6) 8749 077.

Measurement probes    Click on any item for descriptions, options, info, etc.

Part number Description Price (NZ Dollars)
Aligator clip chrome
made in Germany
Chrome plated non insulated aligator clip for 4mm banana plug Per clip:
full picture
Insulated aligator clip Red
made in Germany
PVC insulated aligator clip for 4mm banana plug Per clip:
full picture
Insulated aligator clip Black
made in Germany
PVC insulated aligator clip for 4mm banana plug Per clip:
full picture
Spikey probes
made in Germany
PVC insulated 'back' probes for 4mm banana plug
Ideal for back probing connectors
high carbon spring steel for durability
Per probe:

Per set (8):
full picture
ATS 653 'Screw' probes
made in Germany
PVC insulated piercing probes for 4mm banana plug
The wire piercing tension is regulated by turning the colar of the probe
Set of 2 probes:
full picture
Hirschman piercing probes
made in Germany
Insulated spring loaded piercing probes for 4mm banana plug
Simply open the clip move around the wire and release.
Per probe:

Per set (2):
full picture
600 Amp current clamp
by TiePie
2 - 600 Amp fast response Hall effect current clamp (AC/DC)
Zero calibration with one push button.
full picture
80 Amp current clamp
by TiePie
0.1 - 80 Amp fast response Hall effect current clamp (AC/DC)
Zero calibration with one push button.
full picture

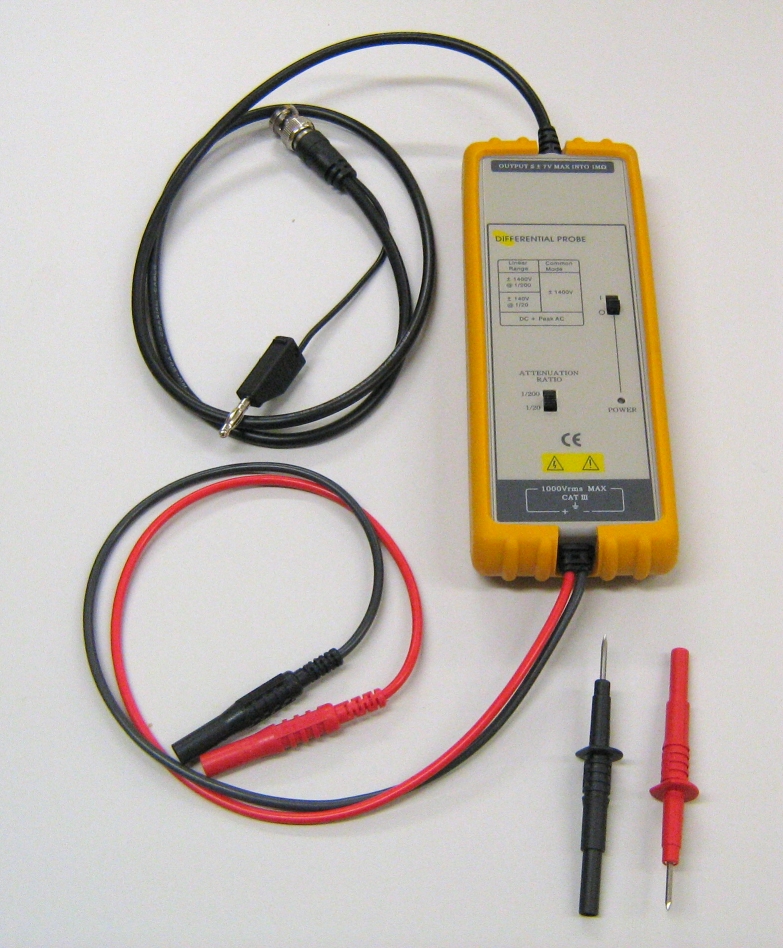

1:200 differential probe
by TiePie
Convert your scope to a differential scope and measure up to 1400V.
Can handle accurately speeds of up to 25 Mhz.
Perfect for Hybrid applications!
full picture

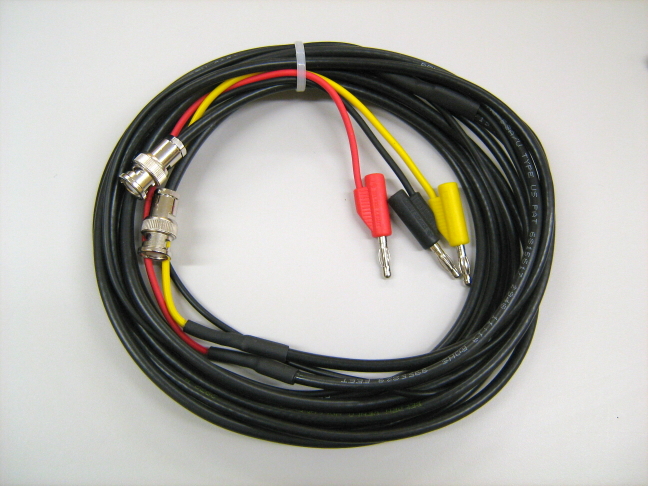

ATS 5000
lead set
by GMTO
CH1 lead (black and red 4mm) and CH2 lead (yellow 4mm), BNC connectors Per set
full picture

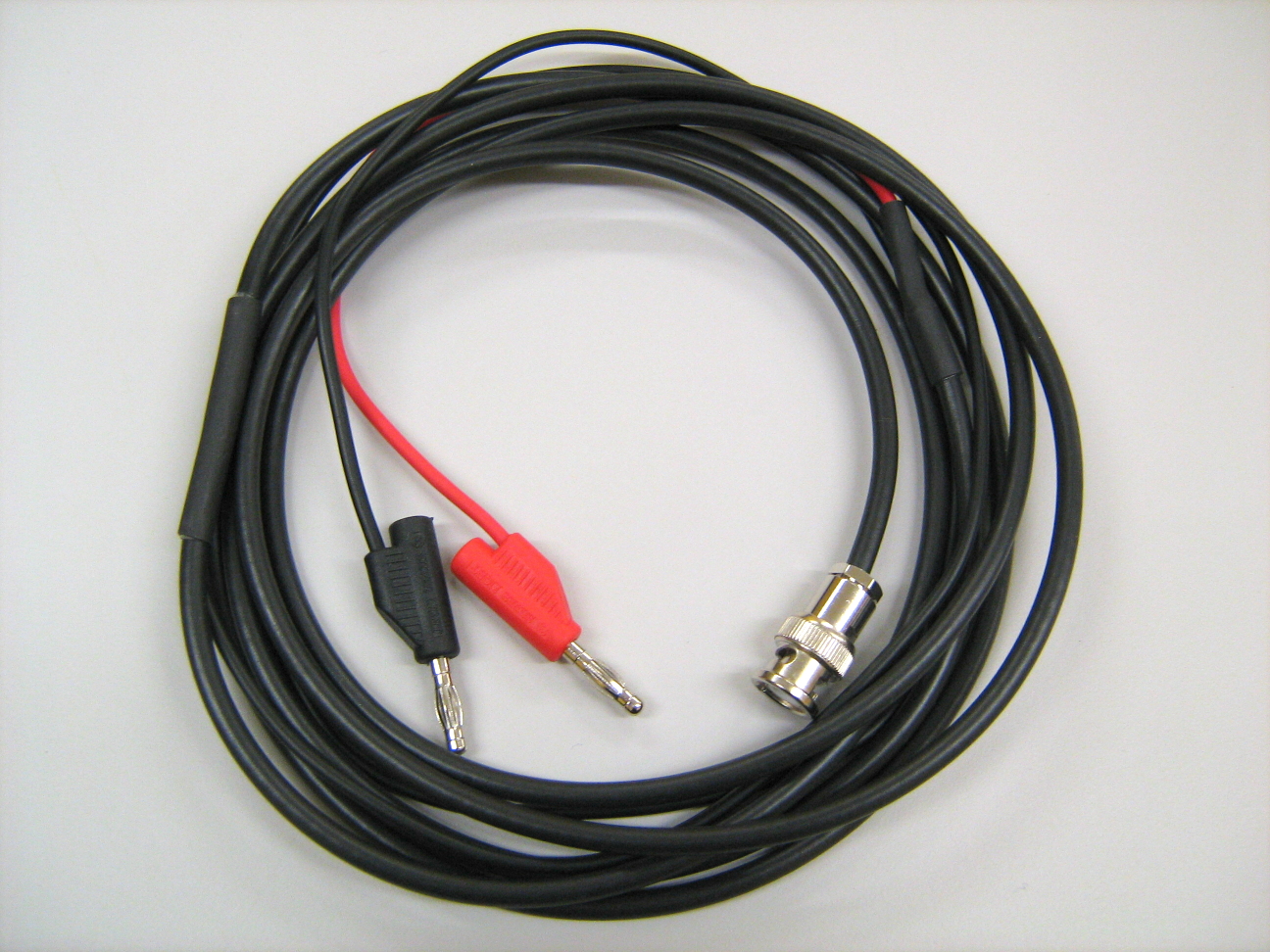

ATS 5000
CH1 lead
by GMTO
CH1 lead (black and red 4mm), BNC connector Per lead
full picture
ATS 5000
CH2 lead
by GMTO
CH2 lead (black and red 4mm), BNC connector Per lead
full picture
ATS 5004
lead set
by GMTO
4 x differential lead, 2 strands per lead (4mm banana+ BNC connector) Per set
full picture
RFS 400
Return flow sensor
by GMTO
Common rail return flow sensor, to check delivery balance Per set
full picture
APS 260
Absolute Pressure Sensor
by GMTO
Pressure sensor with internal power supply, for manifild vacuum, boost pressure and fuel pressure. Per set
full picture
ATS 626
G force Sensor
by GMTO
G force sensor kit. For dyno graphs, brake force measurement, suspension testing, engine misfire detection, etc.
including trigger button.
Per set
full picture
KG60 Diesel pressure transducers
made by AVL
Diesel injector line pressure increase pick-up, for RPM and Timing measurements
Various diameters available
From:
full picture
TSD-010 Diesel pressure transducers
made by Brainbee
Diesel injector line pressure increase pick-up, for RPM and Timing measurements
Various diameters available
From:
full picture
