AECS Product Catalogue

Hello, for the latest in AECS Scopes please visit our scope products by clicking here.


ATS 5000 Scope.
Parts, options and prices


click for ATS pamphlet,or scroll down for pricing.
Mobile measuring unit.
(Laptop and colours might differ on actual unit)





Reference Description Price NZ Dollars
ATS 5000
mobile (laptop) unit.
a product of GMTO

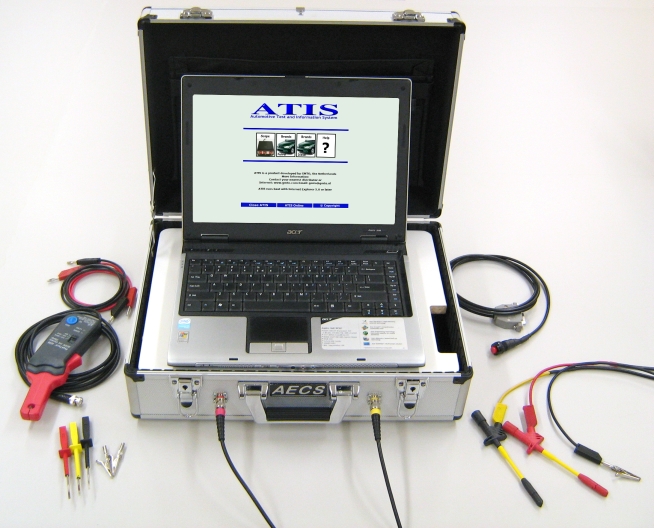

ATS 5000 fitted in alluminium carry case + loaded with options (excluding Laptop)

Options included in mobile () unit:

ATS 5000
a product of GMTO

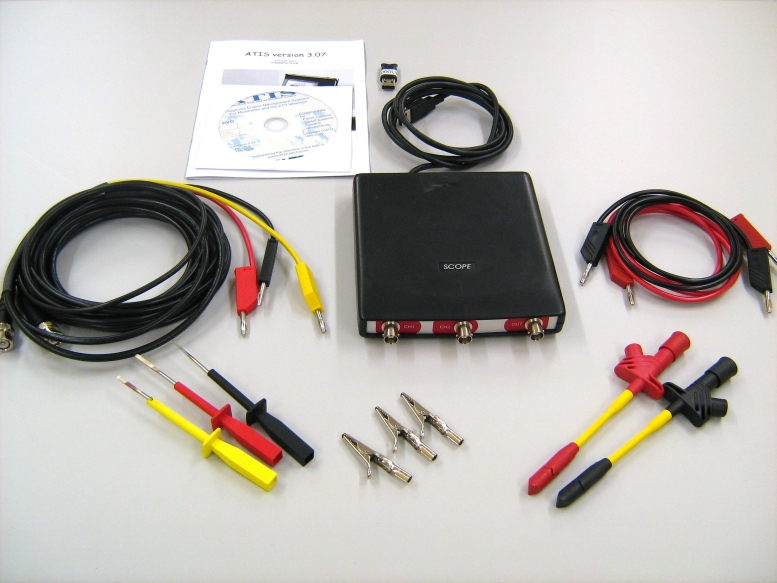

Automotive Test System, fast 50 MS/sec dual channel lab scope, bare mobile version.
(50 MS/sec means 50 million measurements per second)
ATIS scope software
a product of GMTO
ATIS diagnostic software (wiring diagrams Engine management systems + ABS, recorded good scope patterns, colour "how to connect pictures", reading of DTCs, etc.)
ATIS Lite scope software
a product of GMTO
ATIS diagnostic software (Generic sample scope patterns, how to connect pictures.)
ATIS dongle
a product of GMTO
Bond software decription dongle (ATIS)
Current clamp 600
a product of GMTO
A zero to 600 Amp current clamp.
Current clamp 80
a product of GMTO
A zero to 80 Amp current clamp.
External trigger button
a product of GMTO
External trigger button for mobile measuring and storing scope patterns
Cable set
a product of GMTO
Shielded cables, extension cables, 3 flat tip probes, 3 aligator clips
2 Piercing probes
Made in Germany
1 red & 1 black Hirschman piercing probe
Conversion to mobile (laptop ) unit.
a product of AECS
Alluminium carry case +assembly &materials (excluding laptop)
12 Months Technical support.
by AECS
12 Months technical phone/ e-mail assistance on up to 5 automotive trouble cases
ATS scope training.
by AECS
1 day attendance of a 2 day training.
Full training is 2 days ()
  Import airfreight, custom clearance and transport insurance.

Extra options (for pictures scroll down)

New laptop laptop spec's
15"TFT LCD screen, 40 Gb HDD,
Further spec's on request.

(price is variable)
High tension probes
a product of GMTO
High tension probes for coil/distributor, DIS and DI ignition systems.
G force sensor (ATS 626)
a product of GMTO
G force sensor with trigger button, for Dyno graphing on the road, suspension testing, cylinder balance test, ect.
Pressure sensor (APS 160)
a product of GMTO
Highly sensetive pressure sensor, for manifold and fuel pressure testing
Return flow sensor (RFS400)
a product of GMTO
Return flow sensor. Measures the return flow of Diesel from common rail injectors. It transforms the flow into scopeable graphs, so you can identify faulty injectors and cylinder balance problems.

Extra bits and replacement parts

Shielded Extension cables
Scope lead shielded extension cables BNC to BNC.
5 mtrs long.
Order with: 'Extension cable connector'
Extension cable connector
BNC to BNC female / female connector bush.
Red non shielded extension cable
Made in Germany
Non shielded Red extension cable 1.5 Meters long with on each side a 4 mm stackable connector
Black non shielded extension cable
Made in Germany
Non shielded Black extension cable 2.0 Meters long with on each side a 4 mm stackable connector
Extension cable connector
Made in Germany
Female / female 4mm Red or black connector bush.
Aligator clip chrome
Made in Germany
Chrome plated non insulated aligator clip for 4mm banana plug
Aligator clip Red
Made in Germany
Red insulated aligator clip for 4mm banana plug
Aligator clip Black
Made in Germany
Black insulated aligator clip for 4mm banana plug
Brakeout fuse
Made in Germany
Breakout fuse for 4mm banana plugs, ideal to find power supply problems.


ATS 5000 scope interface from

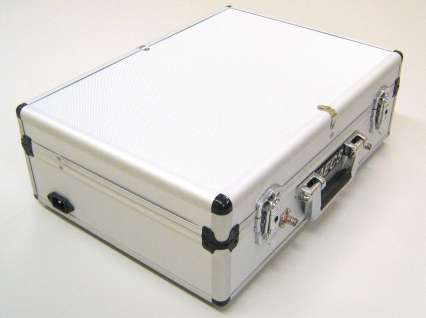

Aluminium tool case with power adapter, laptop platform and front BNC connectors. Makes a handy portable unit of the scope, its accesoires and laptop.



Current clamp 0 - 600 Amp



Current clamp 0 - 80 Amp


Trigger button


Secundary HT pick up


G force sensor with trigger button, for Dyno graphing on the road, suspension testing, cylinder balance test, ect.


Highly sensetive pressure sensor, for manifold and fuel pressure testing


Return flow sensor. Measures the return flow of Diesel from common rail injectors. It transforms the flow into scopeable graphs, so you can identify faulty injectors and cylinder balance problems.


Shielded cable set, including probes and clips


4mm Aligator clip insulated, black each.


4mm Aligator clip insulated, black each.


4mm Aligator clip un-insulated, chrome each


4mm screw action piercing probe each


Hirschman piercing probe set


4mm high tensile steel spikey probes, for back probing connectors each, set of 8
